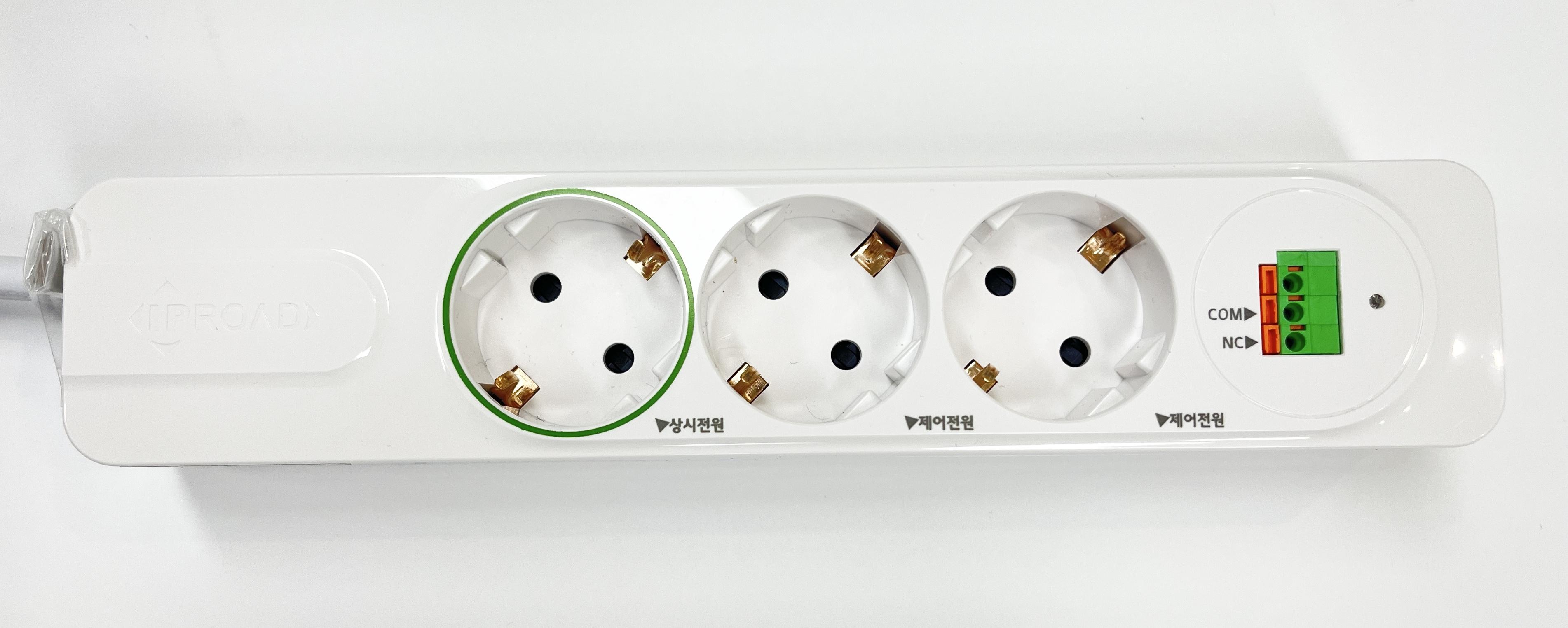

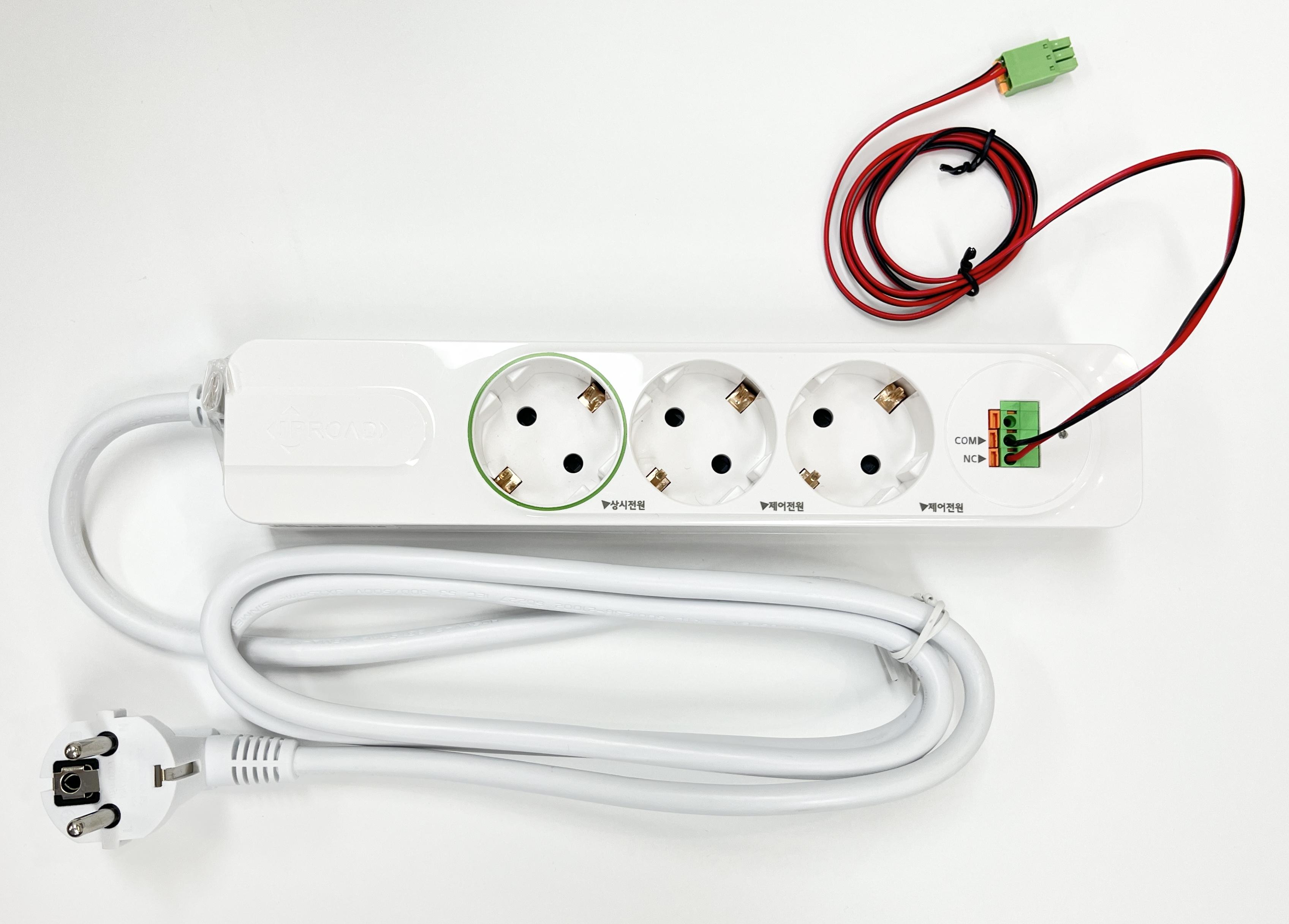

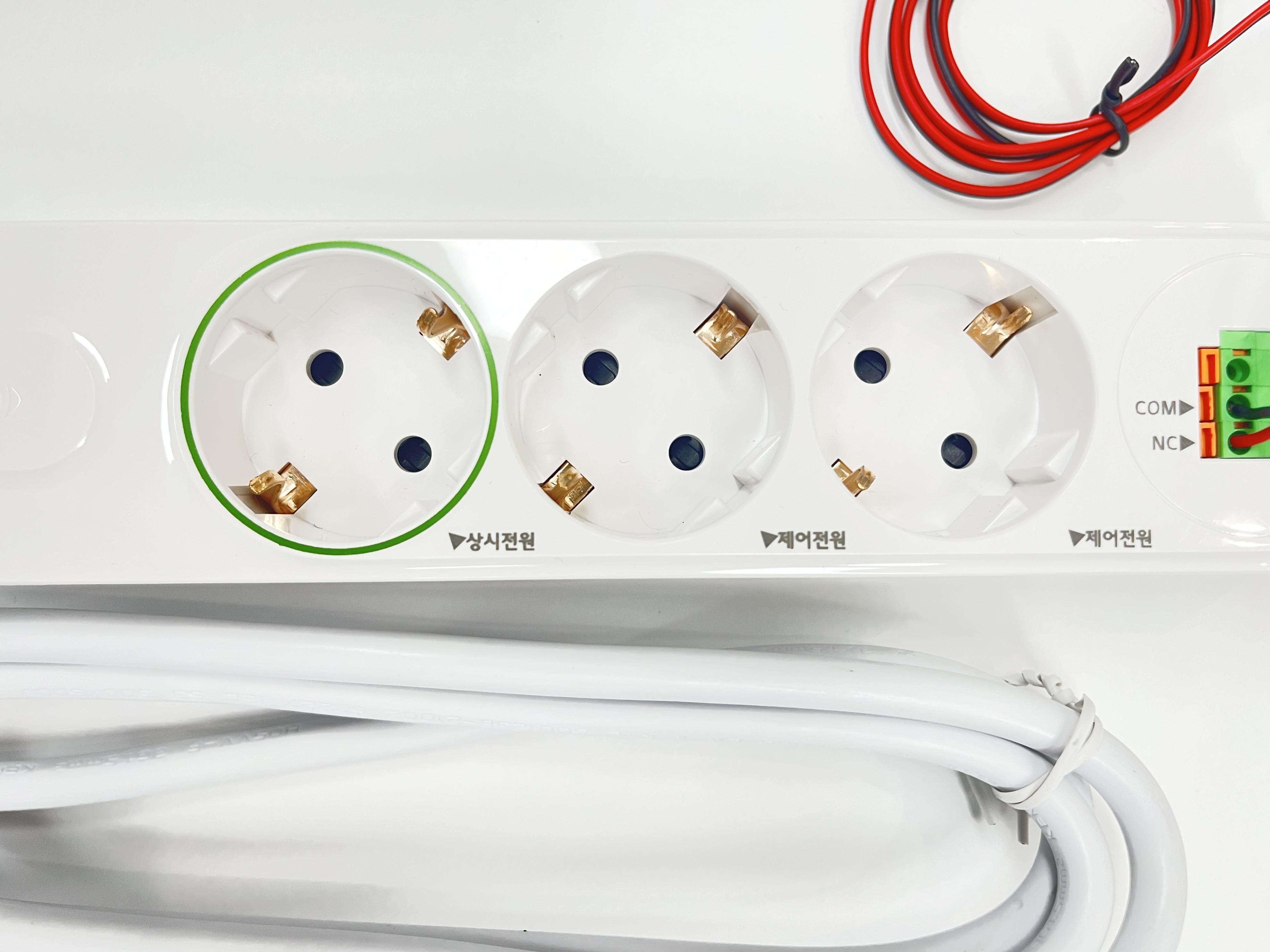

IPR-R200
- Multi-tap that enables power control of the connection equipment
- remote power control function
- Provides remote power control functions for connected equipment by connecting with IPR-422
- Provides the same function as normal power bars
- The always-on part can also function as a normal power bar when connecting to the included bridge
1. High Capacity Support
- 16A(3,680w)
2. Flame Retardant Material
3. KC Certification: SU04290-21005
제품 규격
| Item | Details |
|---|---|
| Product Name | IPR-R200 |
| Plug Type | European style(Type C, Type F) |
| Maximum Power Consumption | 3680W |
| Rated Voltage | AC 250V ~ |
| Rated Current | AC 16A |
| AC Operation Wavelength | 50 ~60Hz |
| Output Control | DC 5V 2.5W |
| Cable length | 1.5m |
| Interface | • 3-power Connection (1-always-on power, 2-control power) • Power Control Digital Input/Output Socket (D/I, D/O) |
| Size | 249mm × 51mm × 38mm |
다운로드
-
IPR-R200 Catalog
